Production & Replay
Professional production truck and broadcast equipment for live and recorded productions.
Production Truck
- CVM Odyssey | 38' HD Production Truck | 9' Width
- Shore Power: 208 Single Phase, 100 amp / Camlock Power Cable / UPS Protection / Backup Generator: 15.0kW Powertech Diesel
- Router: Ross Ultrix FR5 160x160 Video Matrix
Video Switcher & Displays

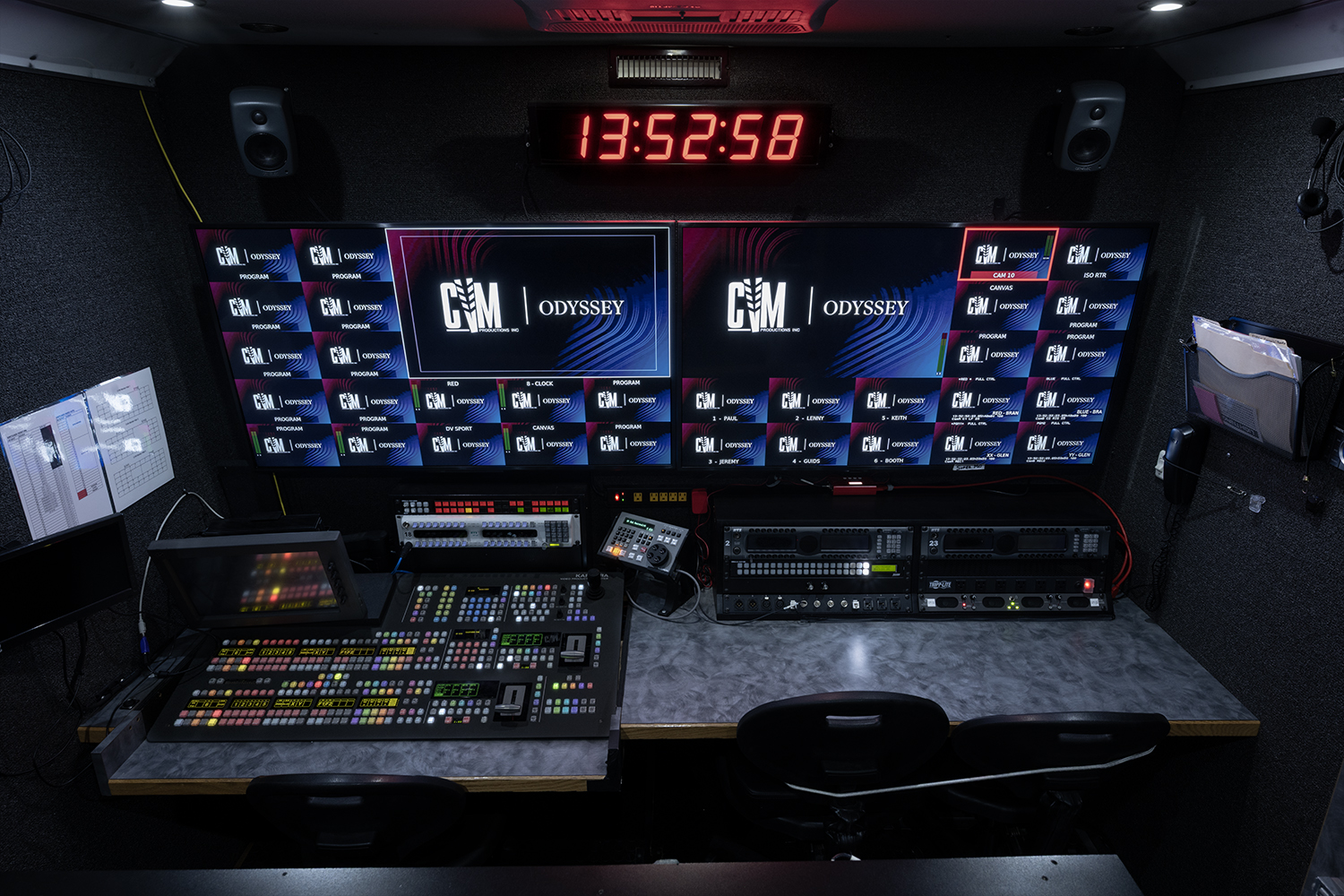

- Grass Valley K-Frame Switcher (64 in x 32 out)
- 1080p/1080i/720p HDR switchable, 2 DPM Channels, 2 Chroma Keyers, DoubleTake
- Ross UltriScape Multiviewer (x3)
- Sony Bravia FW50 50in HDR Monitors (x2)
- Spot Box (EVS XT3 4Ch Controlled w/Lance Controller)
Replay, Engineering & Graphics

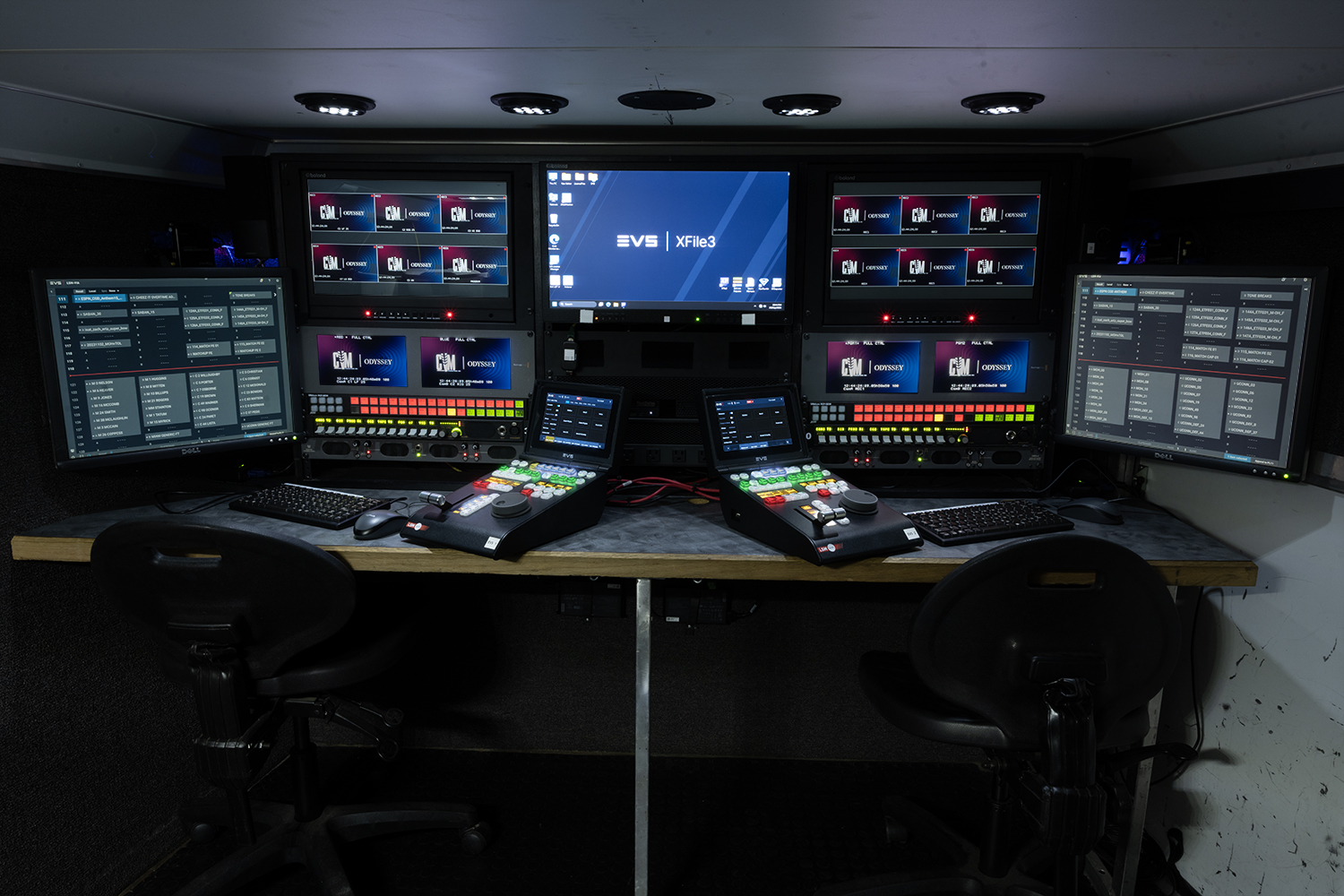

- EVS XT-GO 8-Channel Server (x2)
- EVS LSM-VIA Controllers (x2)
- EVS XFile3 Digital Archive Station
- Recorders: AJA Ki Pro Ultra Deck (x2) / AJA Ki Pro Rack (x2) / Blackmagic HyperDeck Studio HD Mini (x6)
- Sony HDCU-3100 CCU (x6) / Sony RCP-1500 (x7)
- Video Monitor: Sony PVM1741 17" OLED Picture Monitor
- Frame Synchronizers: AJA FS4 4 Ch. (x1) / AJA FS2 Dual Channel (x3)

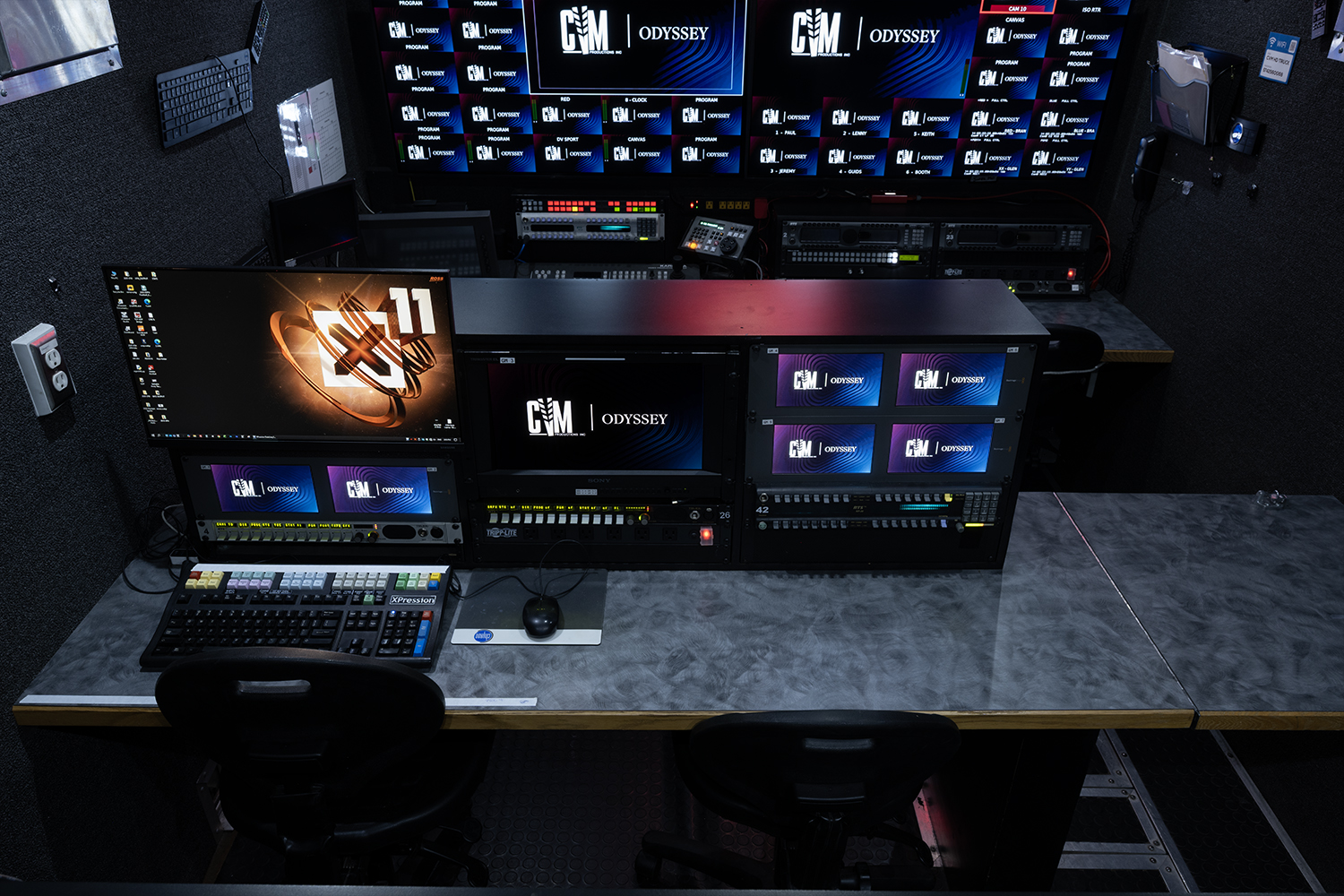

- Graphics: Ross XPression (3 channels 1080p, v11.0 Build 5667)
Broadcast Systems
Professional audio, communications, engineering, and graphics systems for complete broadcast operations.
Audio
- 5.1 Audio Available

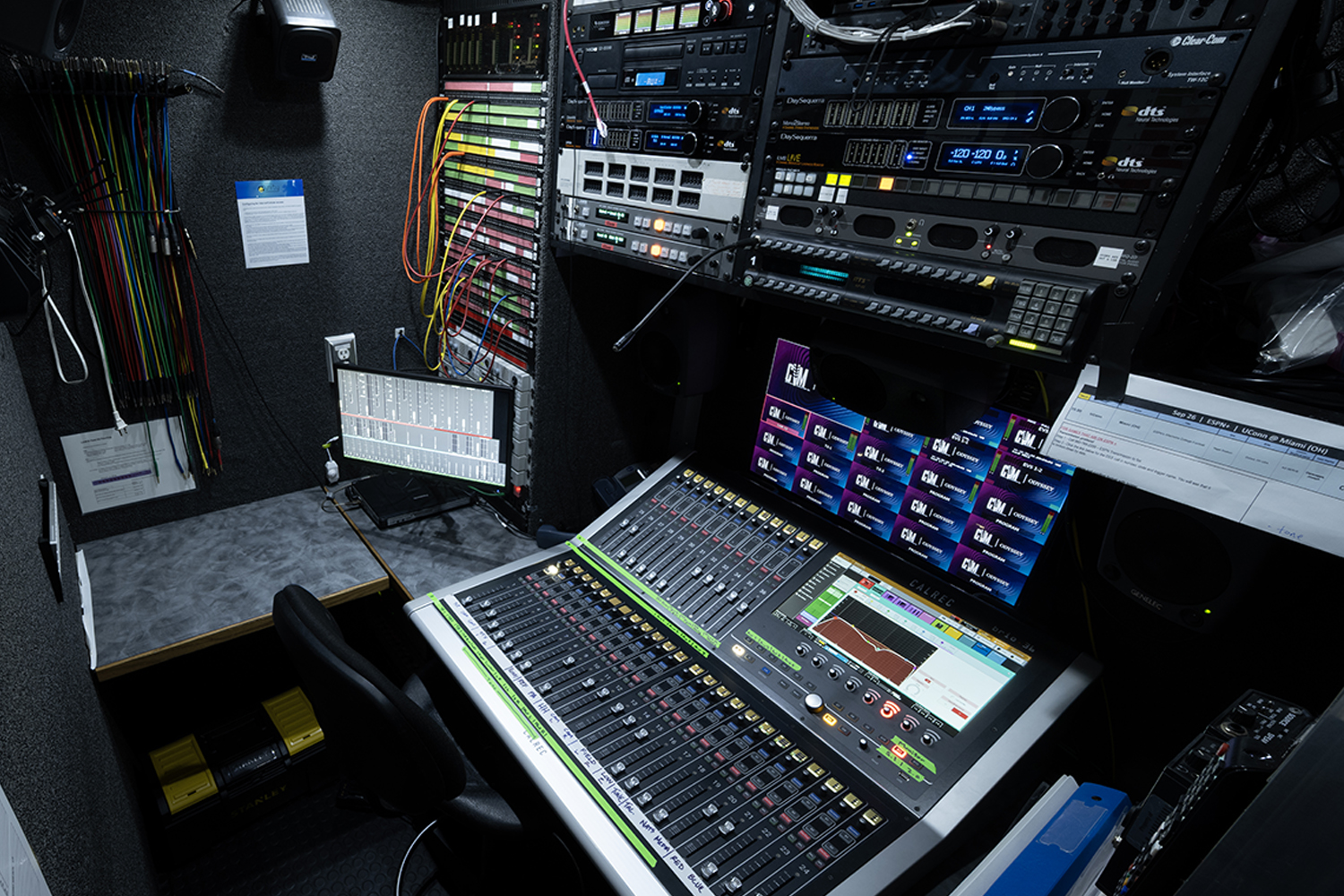

- Calrec Brio 36 Console: 96 input channels
- Dante 64 ch. bridge & MADI I/O
- Ross Ultrix FR5 3456x3456 Audio Matrix
- Sound Plant / Mac Mini Playback
- (8) Channels of Wet (RTS) PL
- iLM8 Loudness Meter
Audio: Field/Booth
- Lance Design Fiber Field Kit
- Lance Design Fiber Booth System: Lance Design Talent Boxes (ADX-120) (x3) / Daltech Talent Boxes (x3) / Announce Headsets (x5) (with INT/non-INT IFB, 2 Talkback ch. ea.) / Additional Mic/Line inputs (x7) / Additional INT/Non-INT IFB (Wet or Dry) (x5)
- Panasonic 17" LCD Talent Monitors (x3)
- Lectrosonic Wireless IFB 2x
- Microphones: Sony ECM-678 (x5), Sennheiser MD-46 (x4), Audio-Technica AT897 (x4)
- Sennheiser Wireless Lavs 2x
Communications
- RTS Cronus (88 Channel) (x3)
- RTS Service Assignment Panel SAP-1626
- RTS Dual Digital Hybrid SSA-424 (x2)
- RTS Digital Telephone Interface TIF2000A
Cameras, Lenses & Support
Broadcast cameras, premium lenses, and professional support systems for reliable live and field production.
Cameras
- Sony HDC-3100 w/HDR (x6)
- Sony HDC-4300 w/HDR (SSM option available)
- Panasonic AG-HCK10G POV Camera
- Additional cameras by request
Lenses
- Canon HD DigiSuper 75xs (w/Image Stabilizer)
- Canon HD DigiSuper 72xs (x2)
- Canon Super 55x (J55x9B IE)
- Canon 22x (KJ22ex7.6B IASE) (x2)
- Canon 21x (HJ21X, 7.5, IASE)
- Canon 17x (KJ17ex7.7B IASE)
- Canon 13x Wide Angle (KJ13x6BKRS)
- Additional Lenses Available as Needed
Camera Support
- Heavy Duty Quickset Tripods (x4)
- Vinten Vector 700 Pan and Tilt Head (x1)
- Vinten Vector 60 Pan and Tilt Heads (x2)
- Contour CT130/150FB Pan Head
- Miller Tripods & Heads (x2)
- Vinten Vision 100 Tripod & Head
Cabling & Power Inventory
Comprehensive fiber, power, and audio cable inventory to support any production requirement.
Fiber Inventory
| Type | Lengths | Details |
|---|---|---|
| SMPTE Fiber | 950', 630' (x2), 550', 500' (x2), 400', 300', 250' (x2), 100' (x2) | Total: 5,160' |
| TAC-12 | 2000', 500' (x3), 250' | ST Fiber (TAC) |
| TAC-6 | 500' | ST Fiber (TAC) |
| TAC-2 | 500' | ST Fiber (TAC) |
| Fiber Converters | N/A | AJA FiDO (x6), Rattlers (x2), Fiber Sheds ST Fiber to SMPTE (x6) |
Available Add-Ons (Ask for Pricing):
- Wireless Comms (Pliant 4ch. System)
- Additional Cameras & Lenses Available
- Super Slo-Mo Camera Option

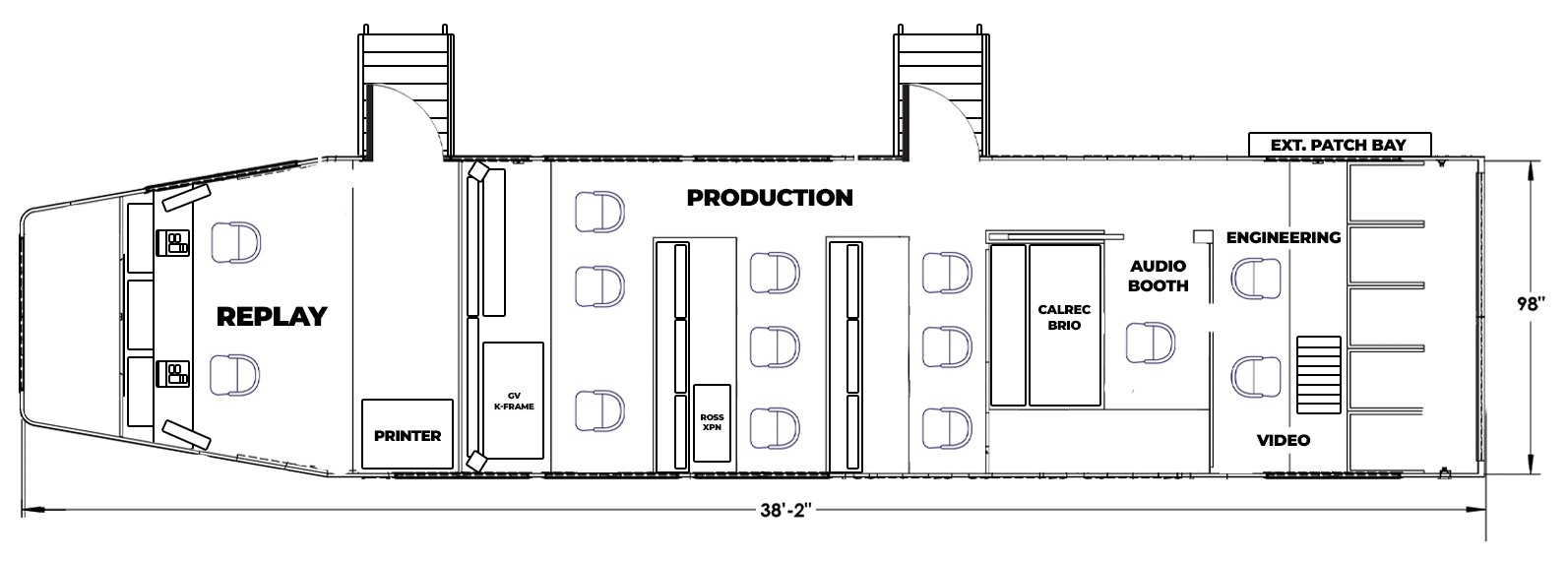

Odyssey Floor Plan
